S0 Board Architecture and Schematics

Hardware architecture and circuit schematics for the S0 board

S0 Board Architecture and Schematics

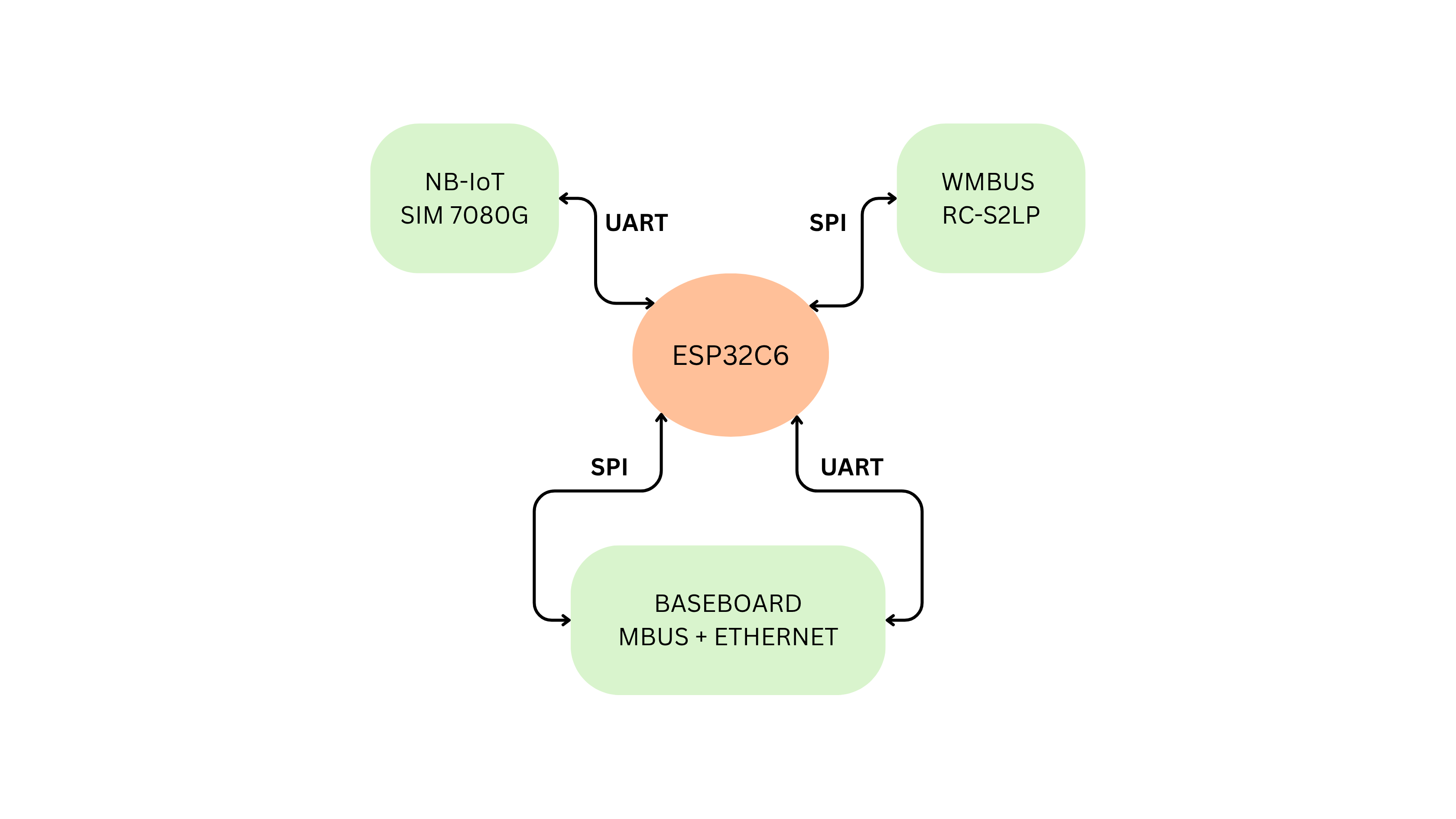

Hardware Architecture

Hardware Architecture

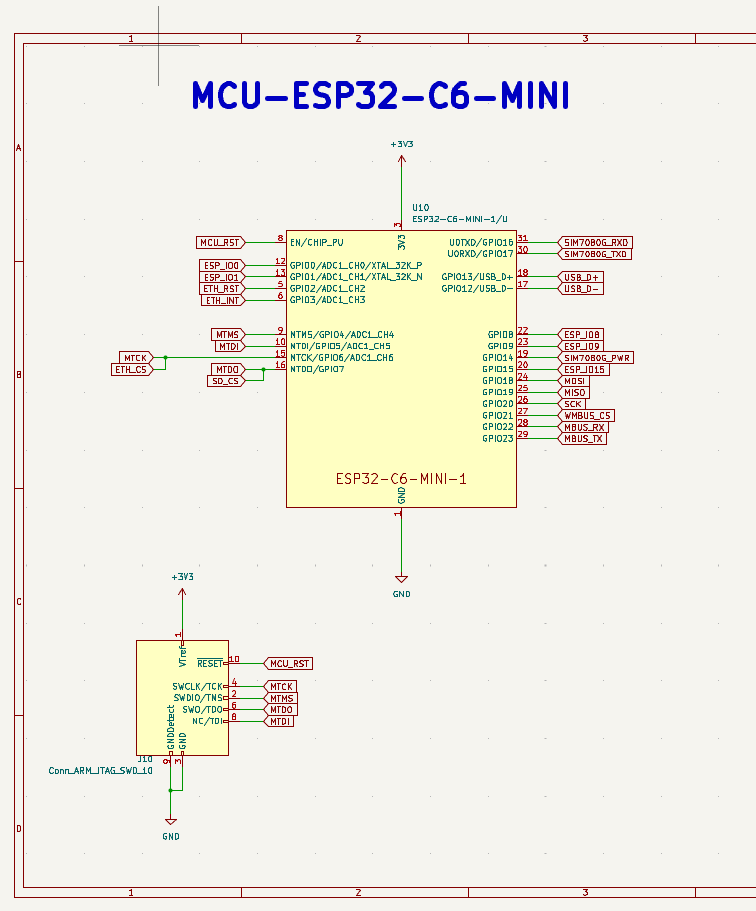

ESP32 Circuit

ESP32 C6

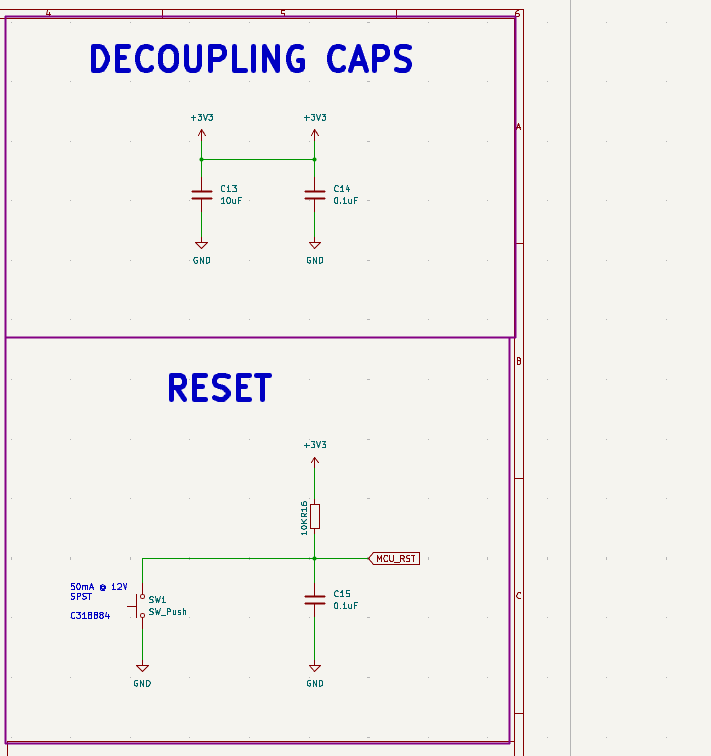

ESP Reset and Decoupling Capacitors

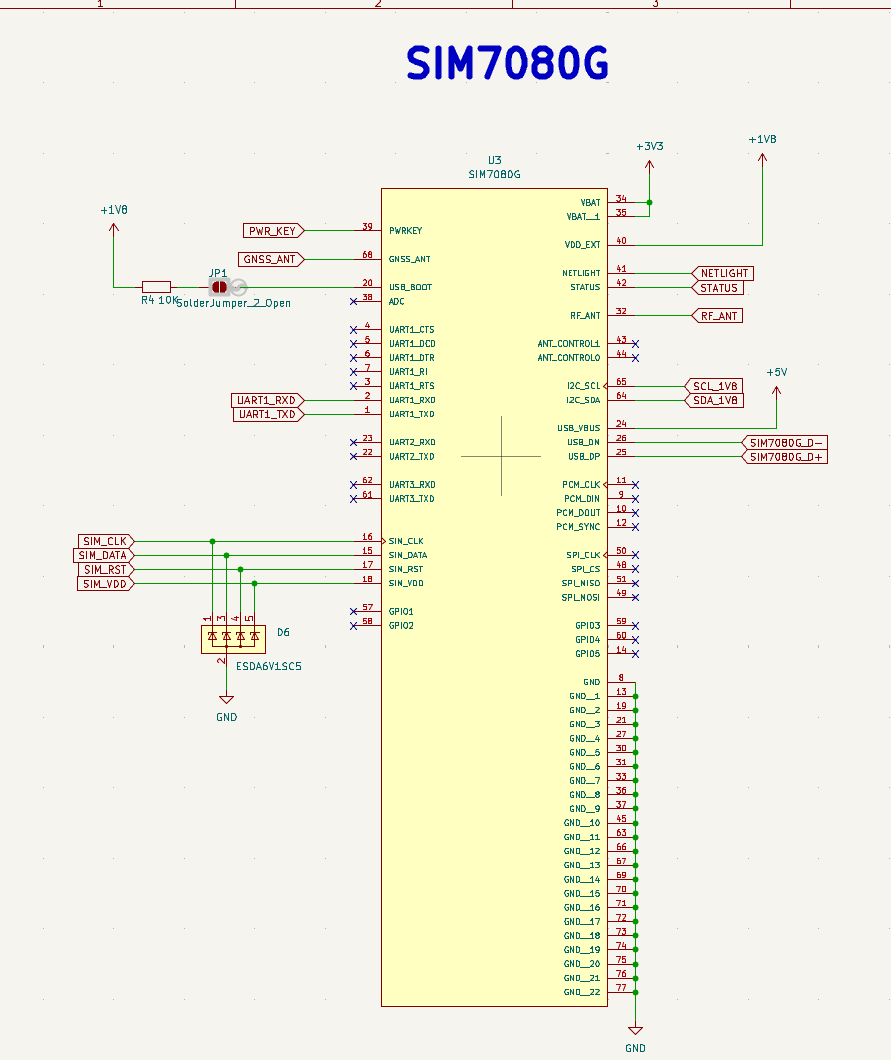

SIM7080G Circuit

SIM7080G

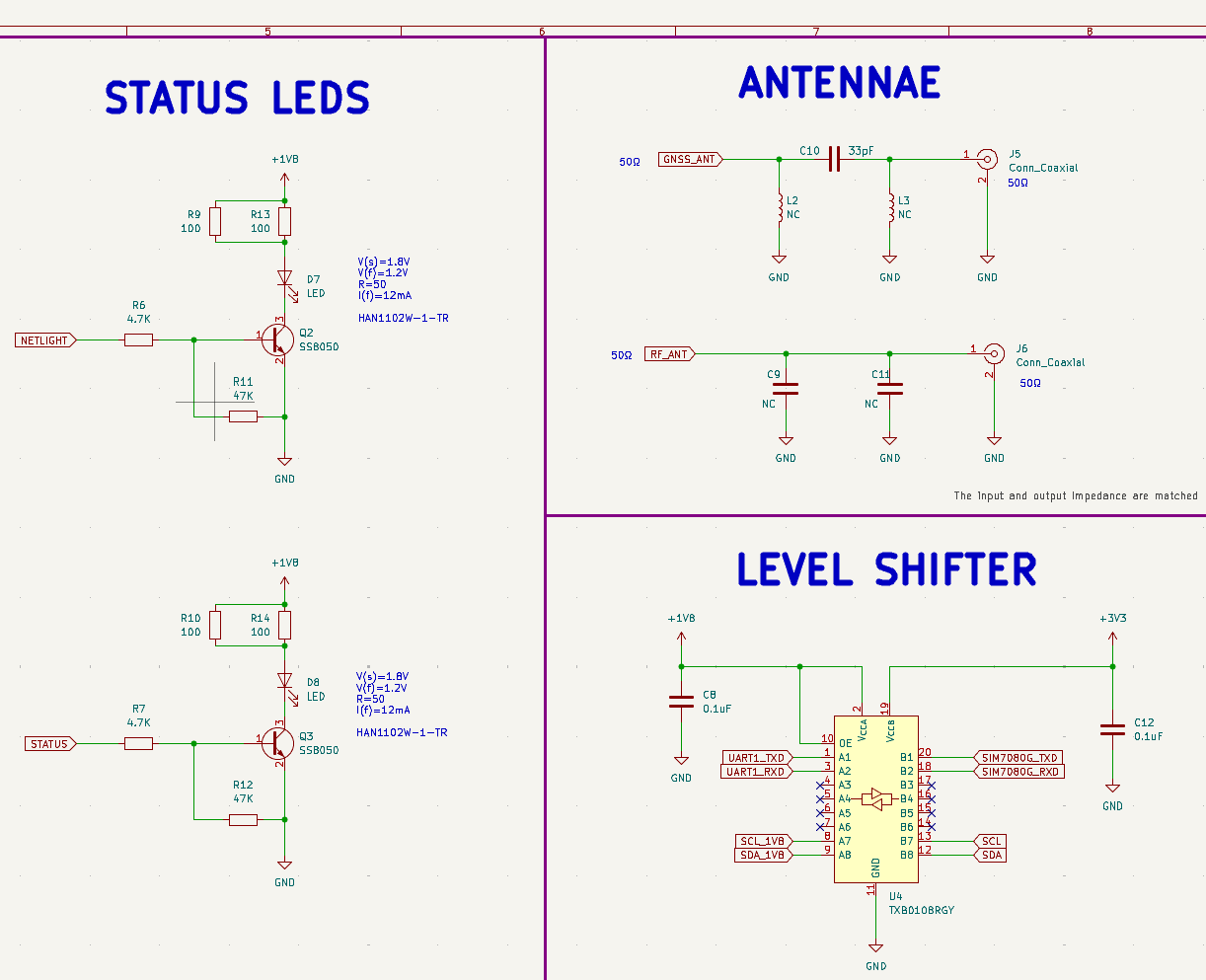

STATUS LEDs, SIM POWER

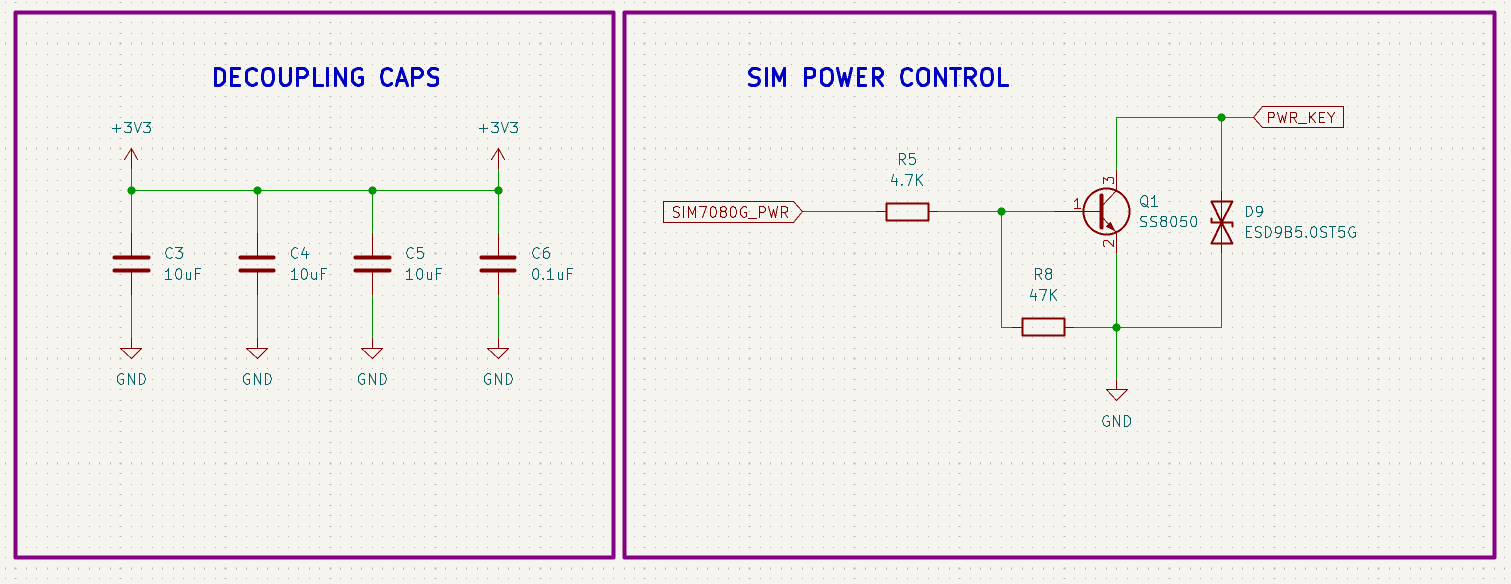

Decoupling Caps and SIM Power Control

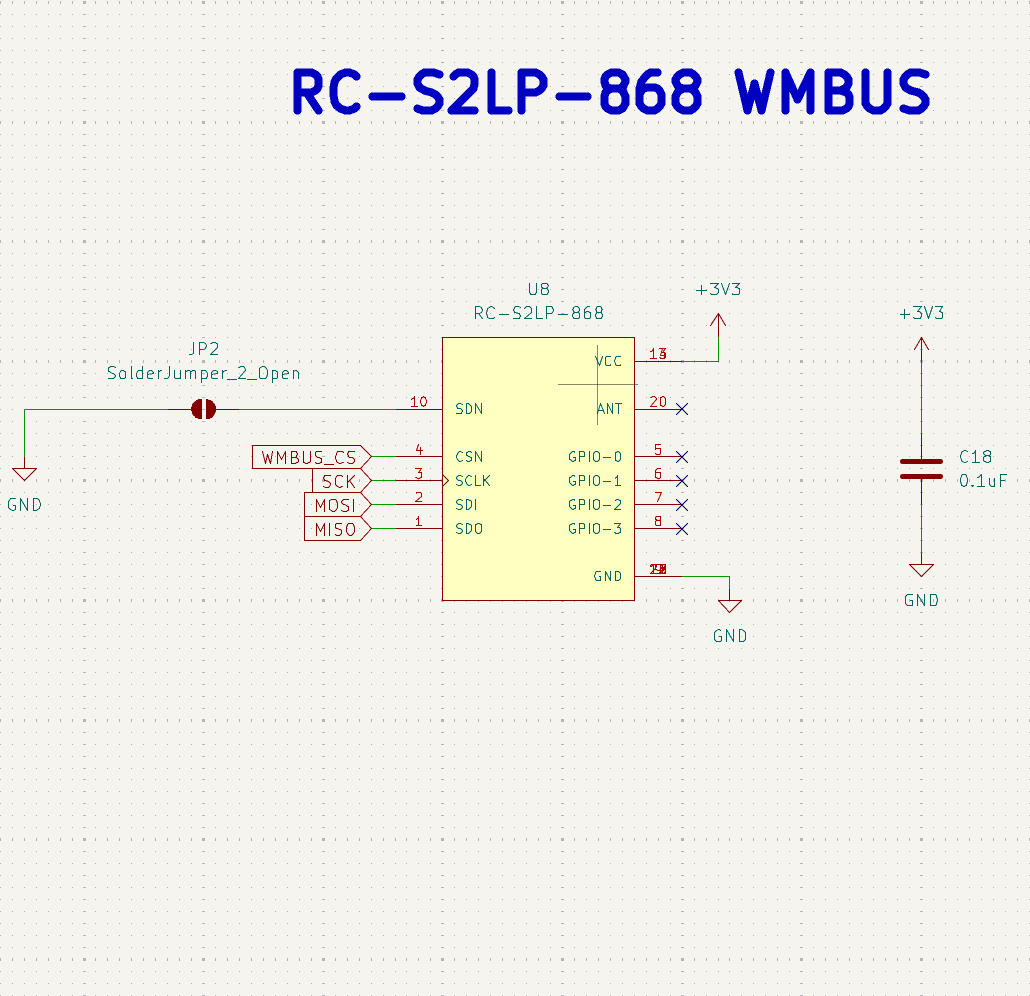

Wireless M-Bus (RC-S2LP) Circuit

WMBUS RC-S2LP

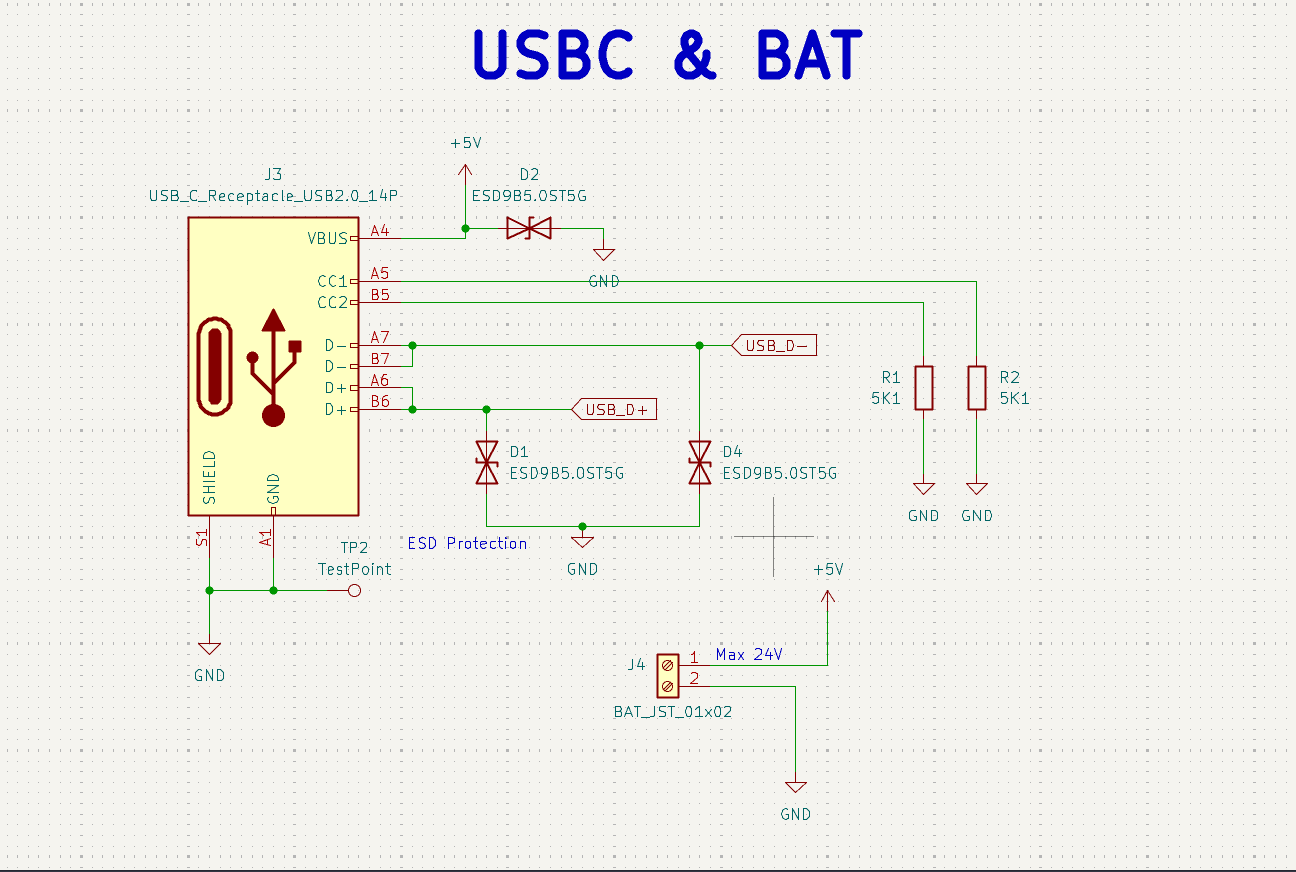

USB-C and Battery Connector

USB-C and Battery Connector

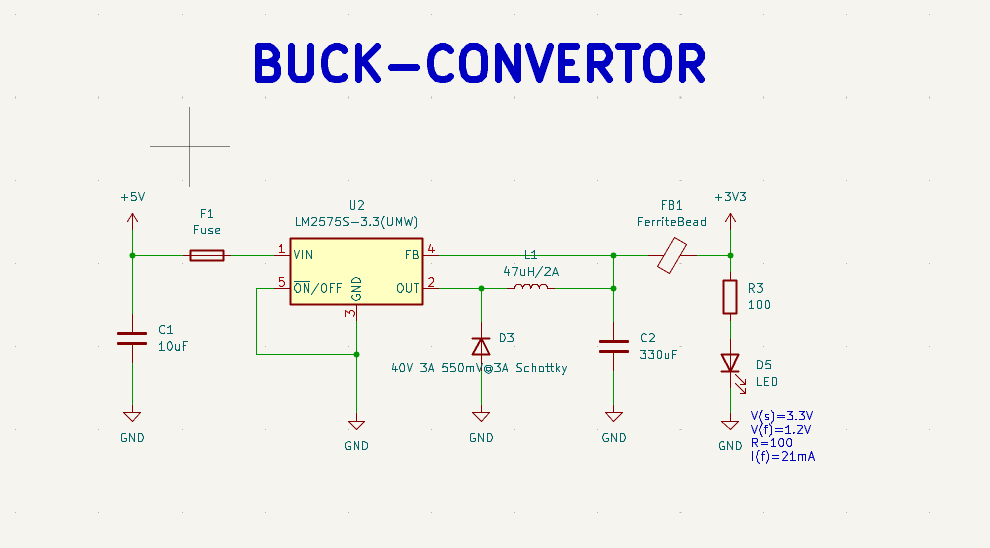

Power Conversion Circuit

Buck Converter Circuit

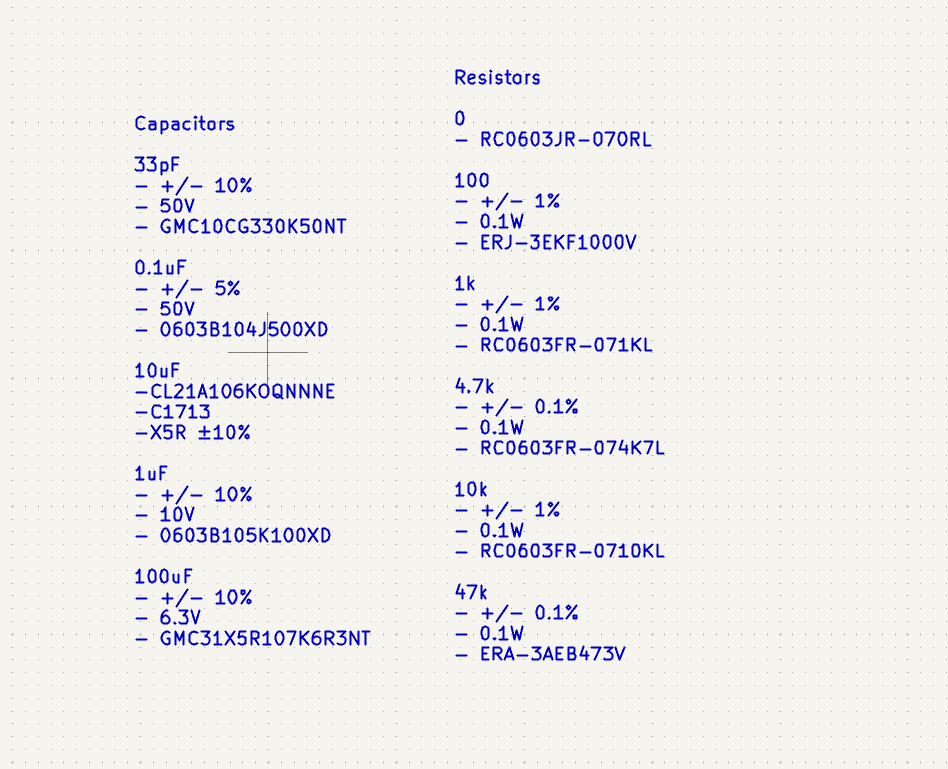

Resistor and Capacitor Specs

Resistor and Capacitor Specs

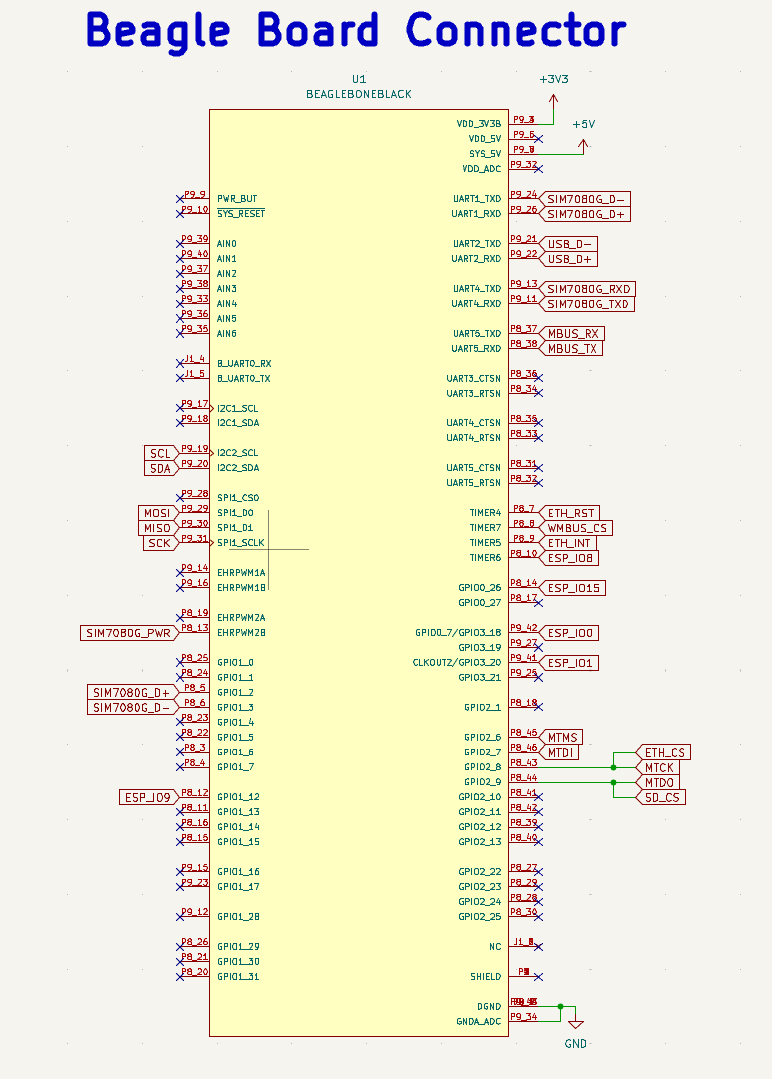

Board Frame and Header Pins

Board Connector

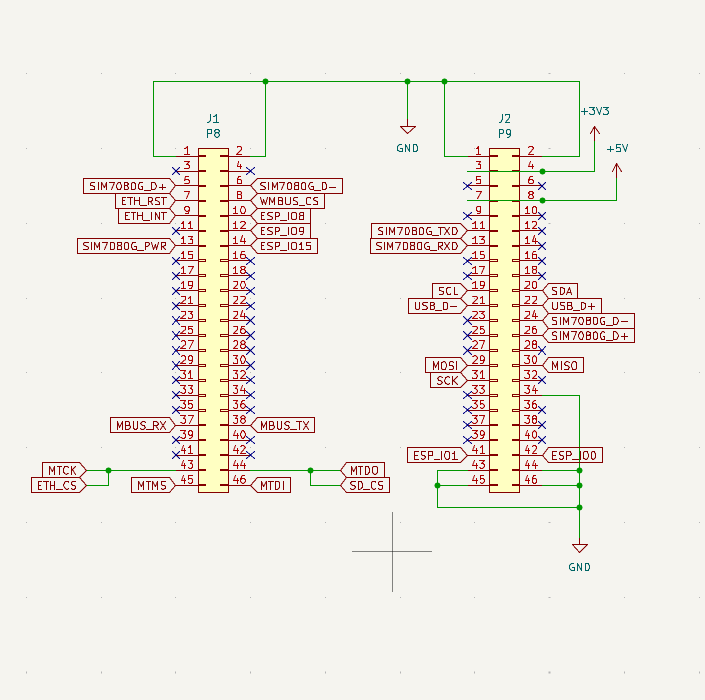

Female Headers
